MUNICIPALITY VEHICLES

Suction Vehicle – MSV

High-capacity vacuum collection for liquid waste operations.

The MSV uses powerful vacuum systems and configurable tanker bodies for collecting and transporting liquid waste in municipal and industrial applications.

Request a Quote Download Brochure
  • Vacuum Suction
  • Up to 2,500 m³/hr
  • Liquid Waste

The MERAJ Suction Vehicle (MSV) Series provides vacuum tanker configurations for hazardous and non-hazardous liquid waste collection and transportation. MERAJ can build the MSV on rigid, semi-trailer and frameless semi-trailer chassis with tipping or non-tipping arrangements.

Tank construction can use stainless or carbon steel, while capacity is selected according to the chassis and applicable axle-loading limits. The MSV supports fixed-body layouts using the MERAJ Flex mount system, anti-surge baffles, manhole access and optional hydraulic tank tipping.

Available air pumps range from 150 to 2,500 m³/hr, with rotary vane, oil-free, air-cooled, water-cooled and liquid-ring pump types. Municipal fleets that need high-pressure drain cleaning with the vacuum system can compare the MSV with the Combine Suction & Jetting Vehicle (MCSV). The MSV forms part of the MERAJ Municipality Vehicles range.

Request Product Download Brochure

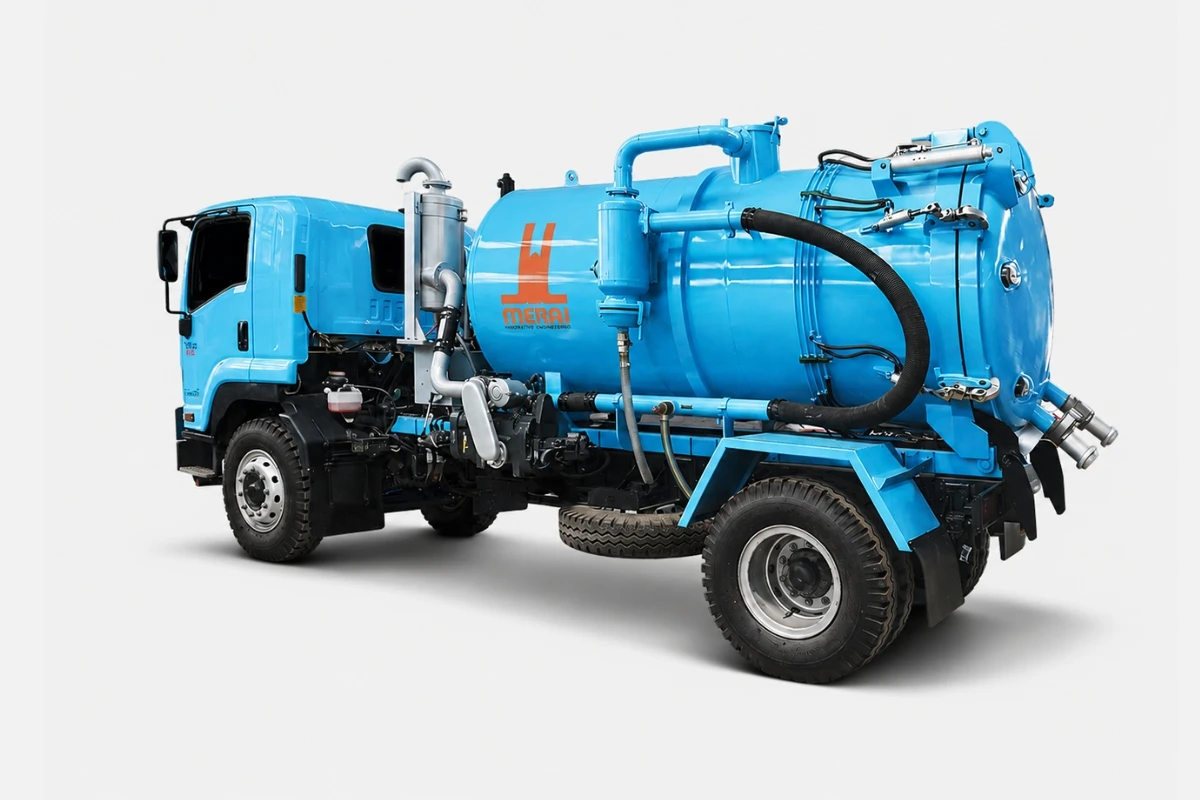

MERAJ Suction Vehicle MSV product view

The Heavy Duty MSV focuses on higher-volume collection using larger rigid, tipping or semi-trailer configurations. Across the range, MERAJ offers air pumps up to 2,500 m³/hr and optional hydraulic tank tipping.

MSV Technical Highlights

Applications
Hazardous and non-hazardous liquid waste collection and transportation.
Air Pump Capacity
150–2,500 m³/hr.
Pump Types
Rotary vane, oil-free, air-cooled, water-cooled and liquid ring.
Chassis Formats
Rigid, semi-trailer and frameless semi-trailer configurations.
Body Layouts
Tipping and non-tipping arrangements.
Rear Door
Hydraulically operated rear-door options with rear manhole access.
Tank Tipping
Hydraulic tank tipping available as an option.
Safety Interlocks
Inlet/outlet, overspill and vent valves can be interlocked.
Anti-Surge Baffles
Internal baffles control liquid movement during transport.
Kit Form
Available as a kit for mounting on a suitable chassis.

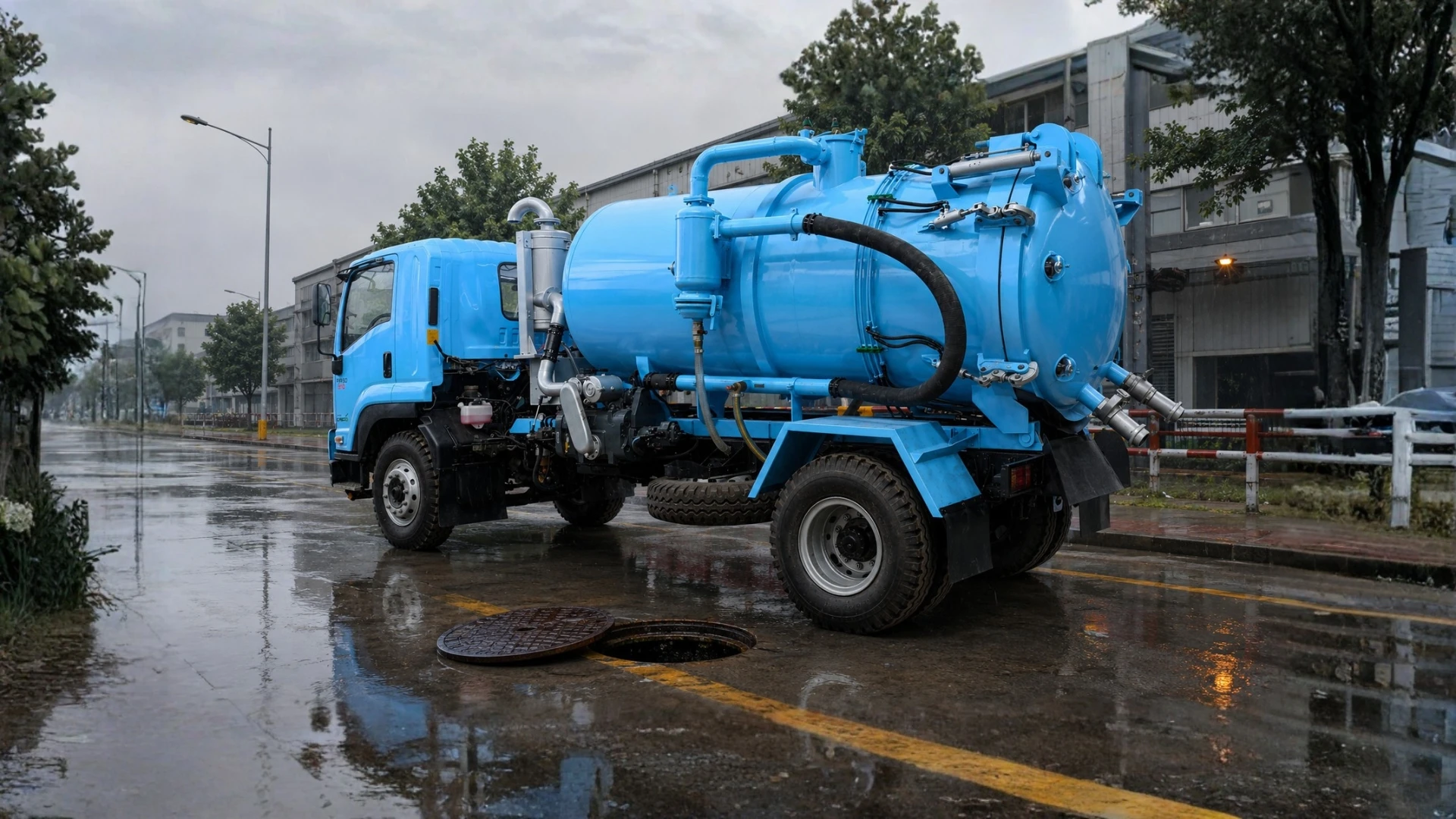

Suction Vehicle – MSV Series product view

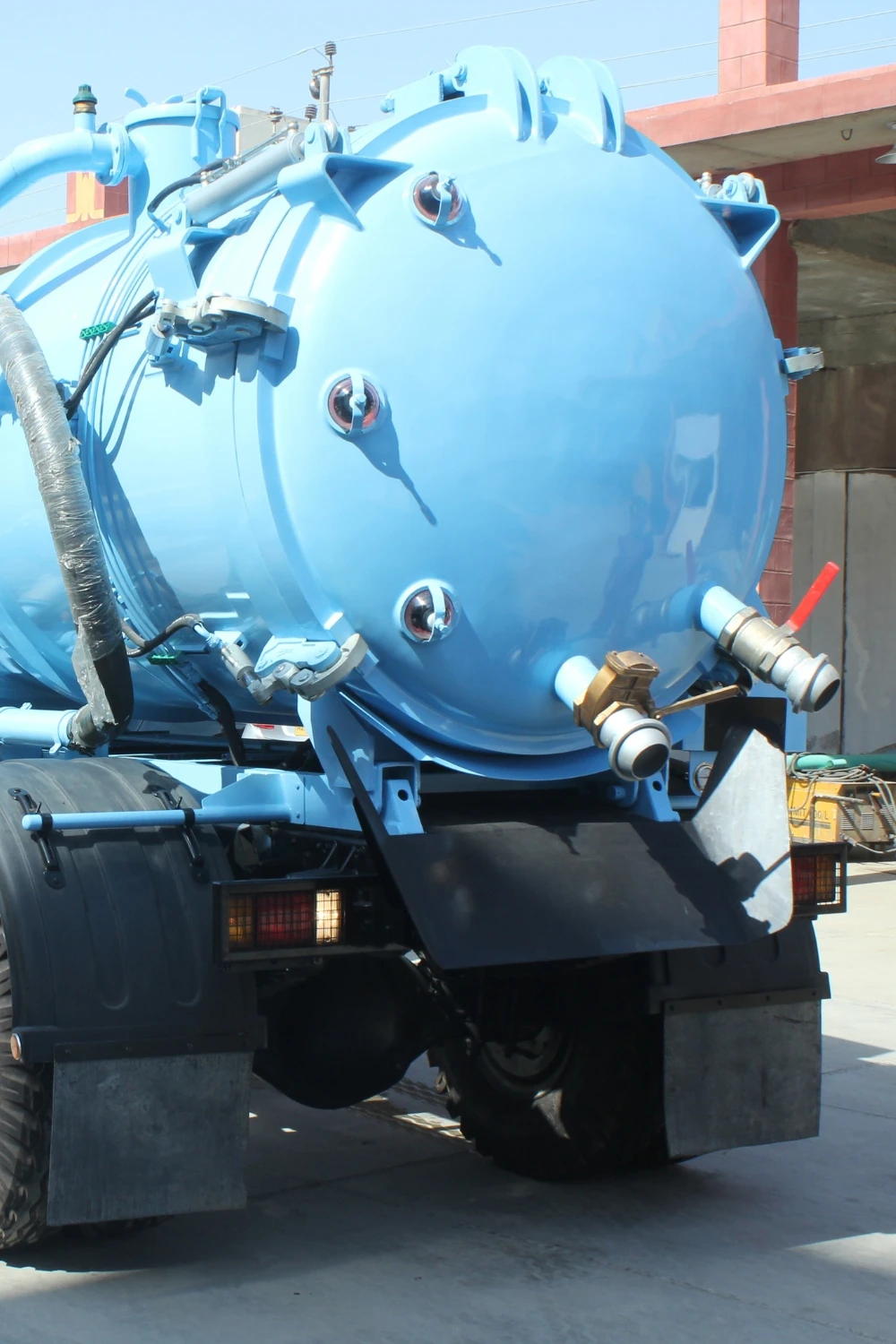

MSV vacuum tanker overview

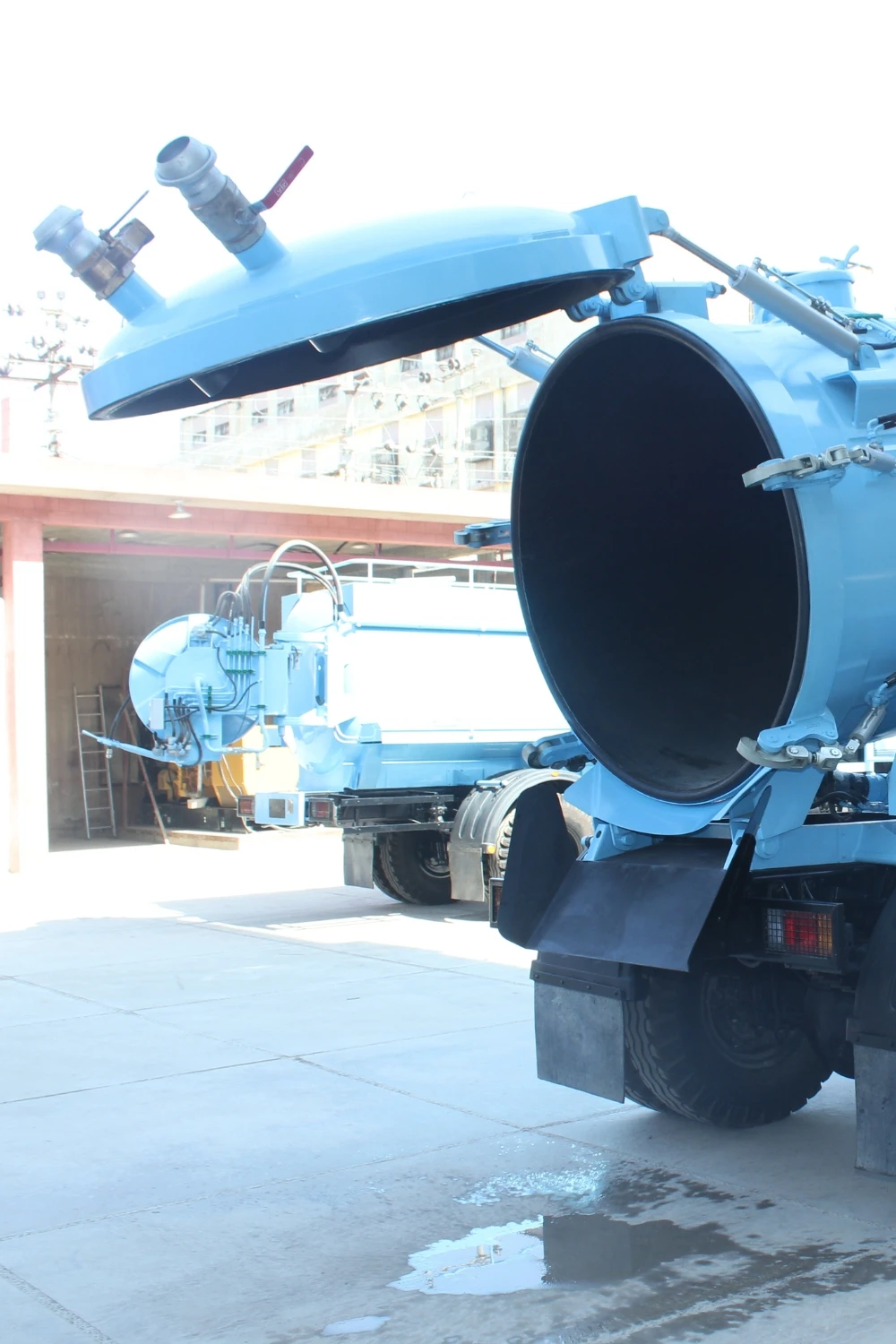

MSV rear door and valves

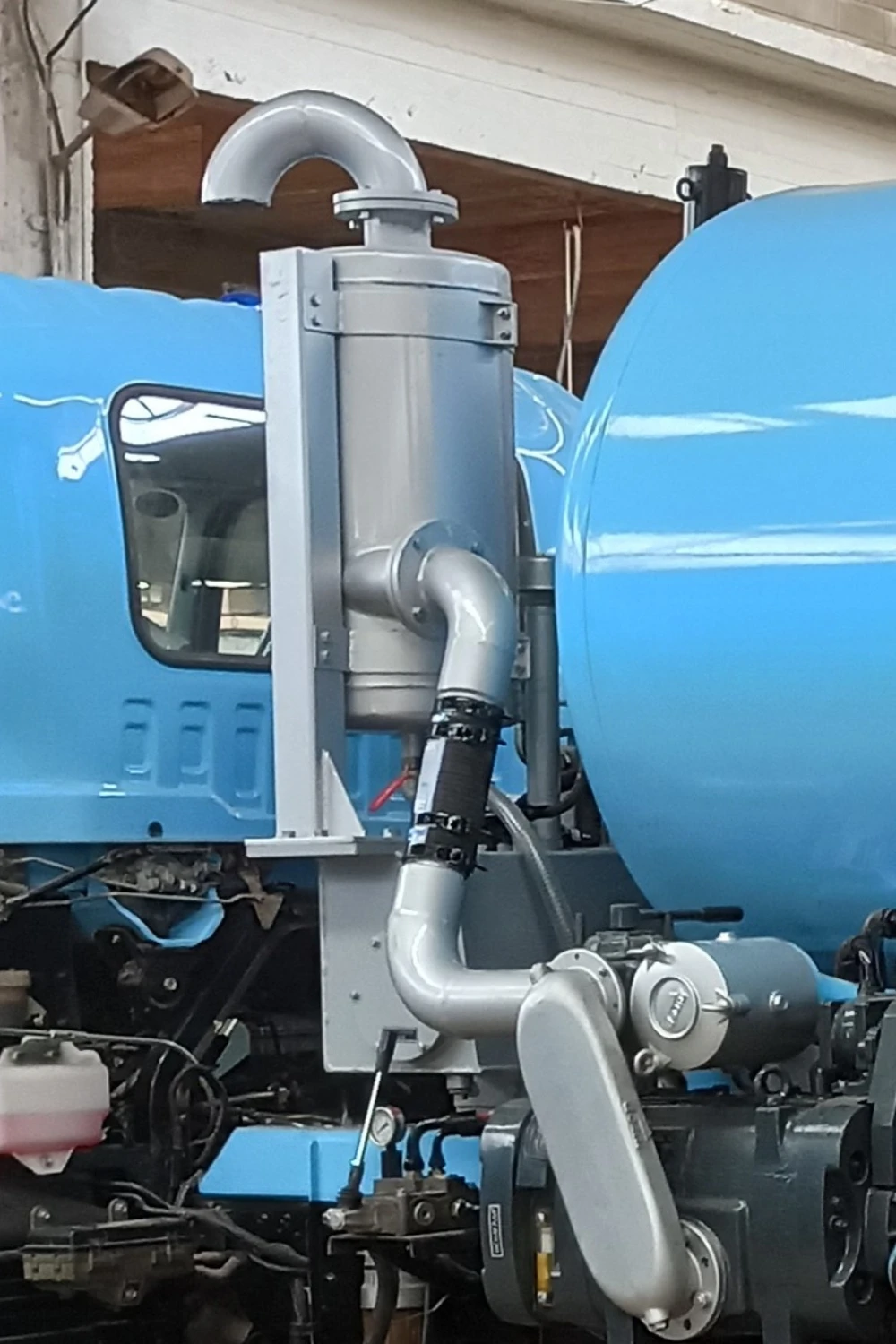

MSV pump and hose management

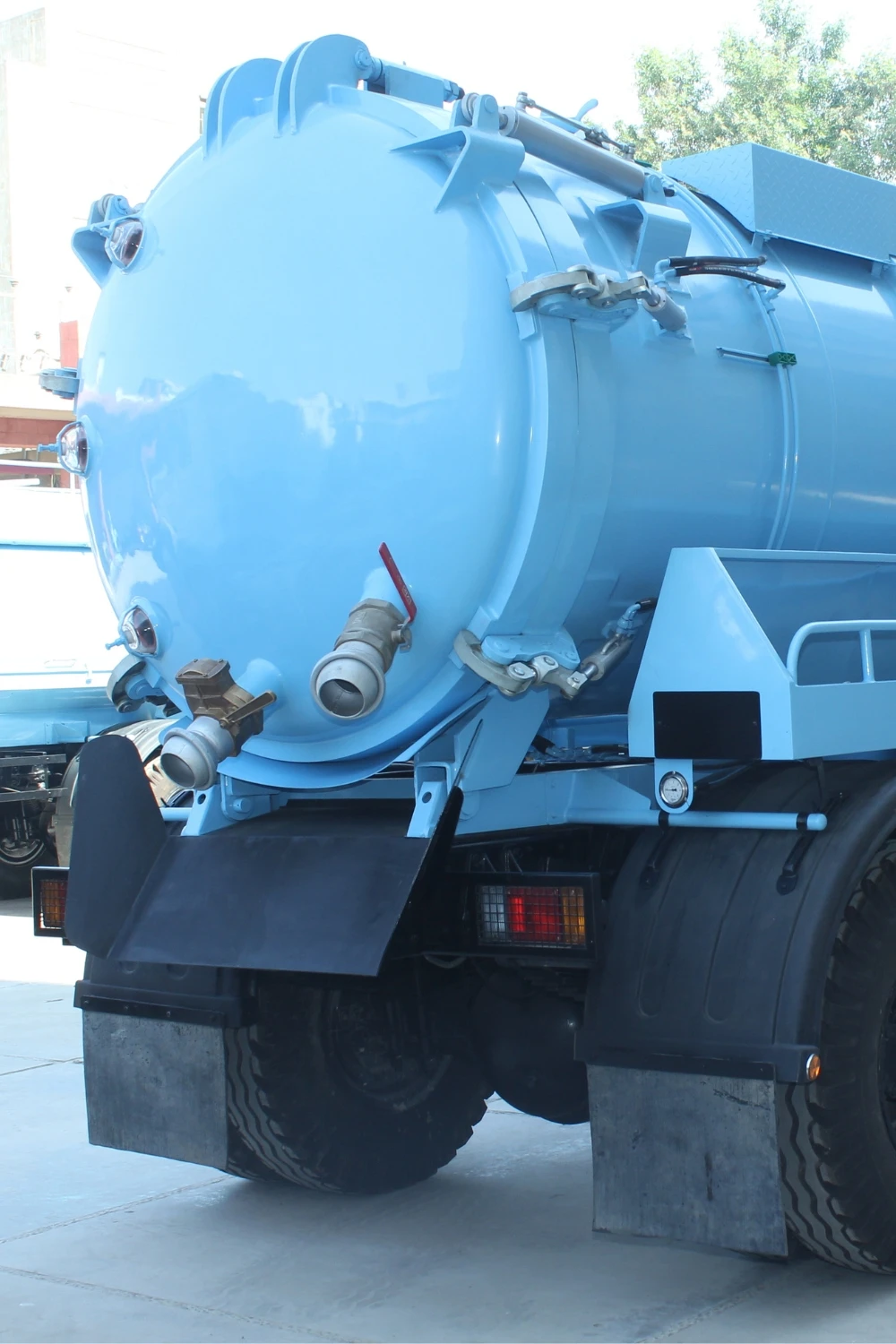

MSV tank tipping mechanism

Frequently Asked Questions

What types of vehicles does Meraj manufacture?

Meraj manufactures firefighting vehicles, rescue vehicles, municipality vehicles, airport rescue and firefighting vehicles, public safety vehicles, and custom industrial vehicles.

Can Meraj customize vehicles for specific project requirements?

Yes. Body layouts, pump systems, tank capacities, equipment compartments, controls, and chassis integrations can be configured around each customer's operating environment and mission profile.

Which sectors does Meraj serve?

Meraj serves municipal authorities, industrial facilities, airports, refineries, public safety departments, utilities, and organizations that need specialized emergency response vehicles.

Does Meraj provide firefighting equipment and pump systems?

Yes. Along with specialized vehicles, Meraj provides firefighting equipment, firefighting systems, specialized pumps, rescue equipment, and engineered vehicle-mounted solutions.

Do your vehicles meet international quality and safety standards?

Meraj engineers its products with certified quality practices and recognized international requirements in mind, supporting dependable performance across demanding operating conditions.

Does Meraj provide aftersales support and spare parts?

Yes. Meraj supports customers with aftersales service, spare parts, technical guidance, maintenance support, and operational assistance for delivered vehicles and systems.

How can I request a quotation or product information?

Use the contact form or Request Product button to share your vehicle type, project requirements, location, and contact details. The Meraj team will respond with the appropriate solution path.
