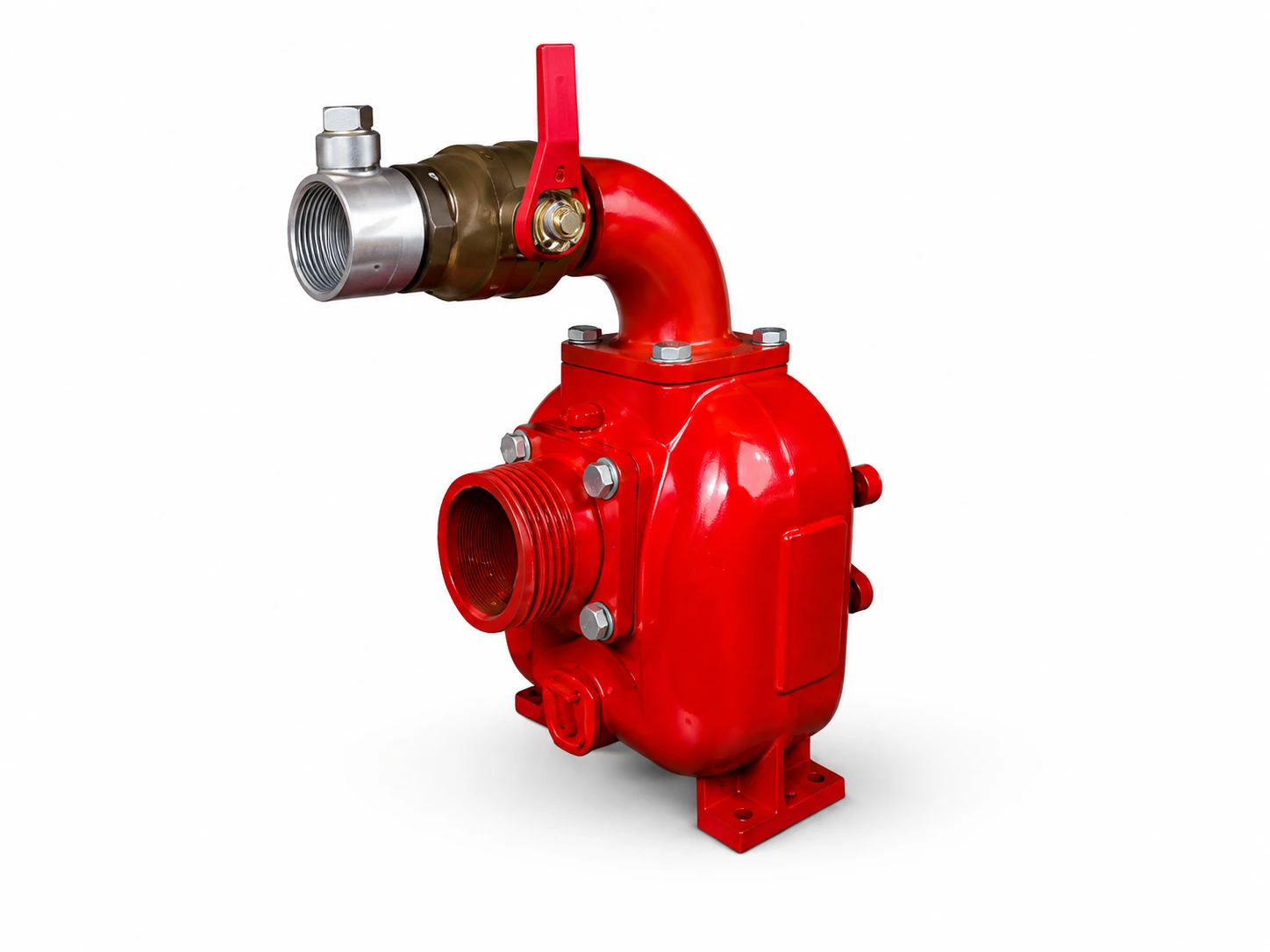

UT Series Pumps
Compact PTO-driven gear-reducer pumps for clean-liquid handling and auxiliary applications across vehicles and industrial systems.
Built for Performance.
Designed for Vehicles.
The UT Series combines compact installation, flexible drive options, and clean-liquid handling for vehicle-mounted and auxiliary pumping applications. Its space-saving design supports efficient fluid transfer where chassis installation space is limited.
Compact Installation
Lightweight and compact design for space-constrained vehicle mounting.
Flexible Drive Options
PTO, hydraulic, or electric drive choices for maximum operational flexibility.
Clean-Liquid Handling
Designed for clean liquids and fluids without large solids, including fuel and water-transfer applications.
Vehicle Integration
Suitable as an auxiliary pump for fire trucks, sewerage-cleaning trucks, and water pumpers.
Choose Your Model
Two models. Multiple applications.UT-2
Compact 2-inch UT Series pump for clean-liquid transfer and vehicle-mounted auxiliary applications.
- Suction 2" (50 mm)
- Discharge 2" (50 mm)
- Max. Flow 185 GPM (700 LPM)
- Max. Power 20 HP
- Net Weight 46.3 lbs (21 kg)
- Impeller 6.5"

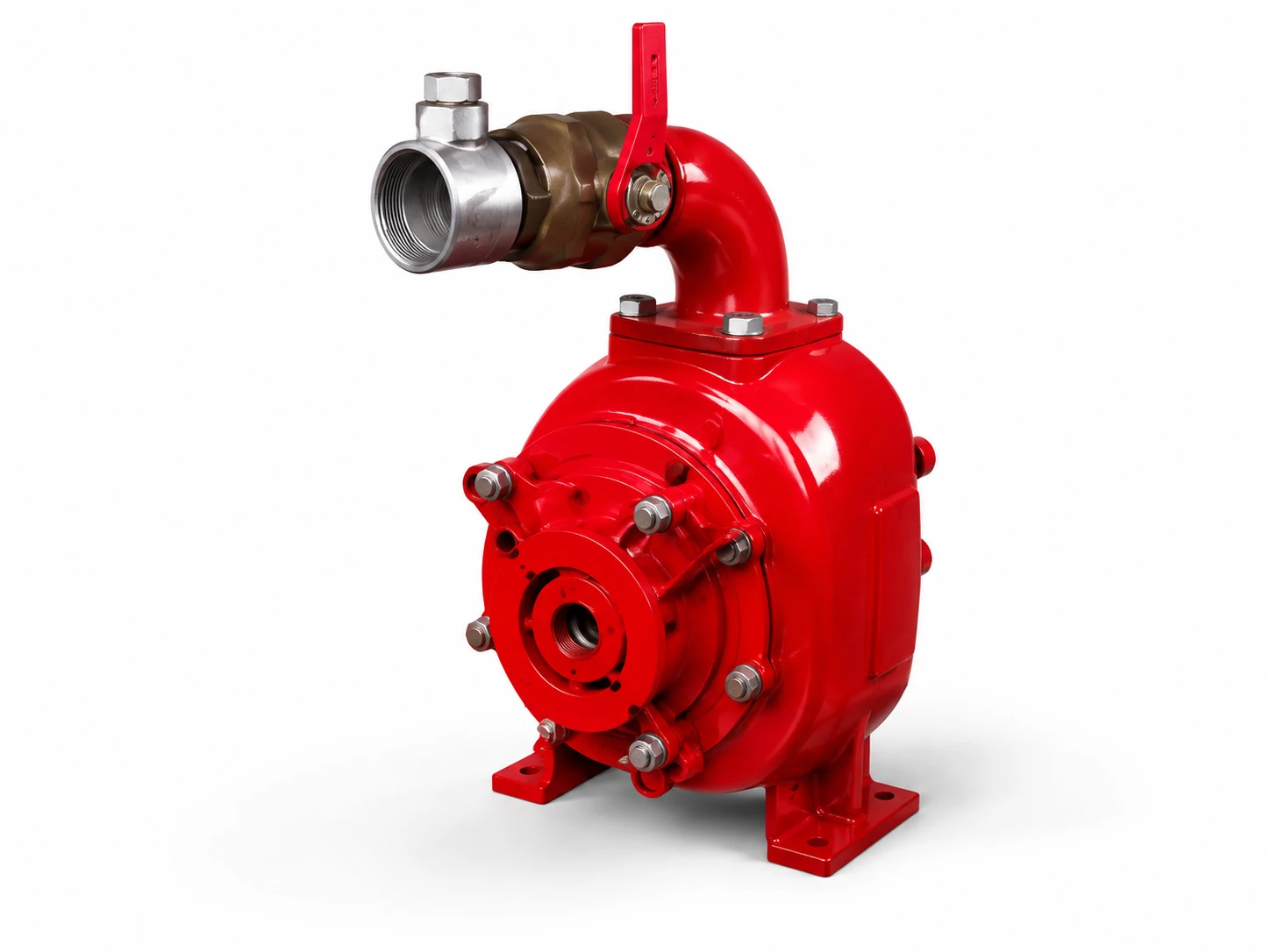

UT-3
Higher-flow 3-inch UT Series pump for applications requiring increased liquid-transfer capacity.
- Suction 3" (75 mm)
- Discharge 3" (75 mm)
- Max. Flow 400 GPM (1514 LPM)
- Max. Power 30 HP
- Net Weight 103.6 lbs (47 kg)
- Impeller 7.25"
Performance
Rated at 700 RPM (UT-2) and 1000 RPM (UT-3)Operating Points
| Model | Flow (GPM) | Head (ft.) |
|---|---|---|
| UT-2 | 150 | 100 |
| UT-2 | 130 | 230 |
| UT-2 | 110 | 335 |
| UT-3 | 360 | 100 |
| UT-3 | 225 | 254 |
Performance Curve
Ideal For
- Fuel transfer
- Water transfer
- Dewatering
- Firefighting support
- Auxiliary systems
UT Series Performance
Verified published operating points and model comparison for UT-2 and UT-3.
UT-2
Compact 2-inch UT Series pump for clean-liquid transfer and vehicle-mounted auxiliary applications.
- Suction
- 2" (50 mm)
- Discharge
- 2" (50 mm)
- Max. Flow
- 185 GPM
- Power
- 20 HP
- Net Weight
- 46.3 lb / 21 kg
- Impeller
- 6.5"
UT-3
Higher-flow 3-inch UT Series pump for applications requiring increased liquid-transfer capacity.
- Suction
- 3" (75 mm)
- Discharge
- 3" (75 mm)
- Max. Flow
- 400 GPM
- Power
- 30 HP
- Net Weight
- 103.62 lb / 47 kg
- Impeller
- 7.25"
Operating Points
| Model | Flow | Head | RPM | Power |
|---|---|---|---|---|
| UT-2 | 150 GPM | 100 ft | 700 | 10 HP |
| UT-2 | 130 GPM | 230 ft | 900 | 15 HP |
| UT-2 | 110 GPM | 335 ft | 1000 | 20 HP |
| UT-3 | 360 GPM | 231 ft | 1000 | 30 HP |
| UT-3 | 225 GPM | 254 ft | 1000 | 30 HP |
Published Operating Points
Flow (GPM) Note: Values shown are based on published operating points.
Applications
Fuel Transfer
Water Transfer
Dewatering
Firefighting Support
Auxiliary Systems
Installation & Drive Options
Power your pump the way your application needs.
- PTO DrivePower take-off or auxiliary drive connection for vehicle-mounted operation.
- Hydraulic DriveUT Series pumps can be adapted for hydraulic motor drive where required.
- Electric DriveElectric-drive compatibility supports alternative system configurations.

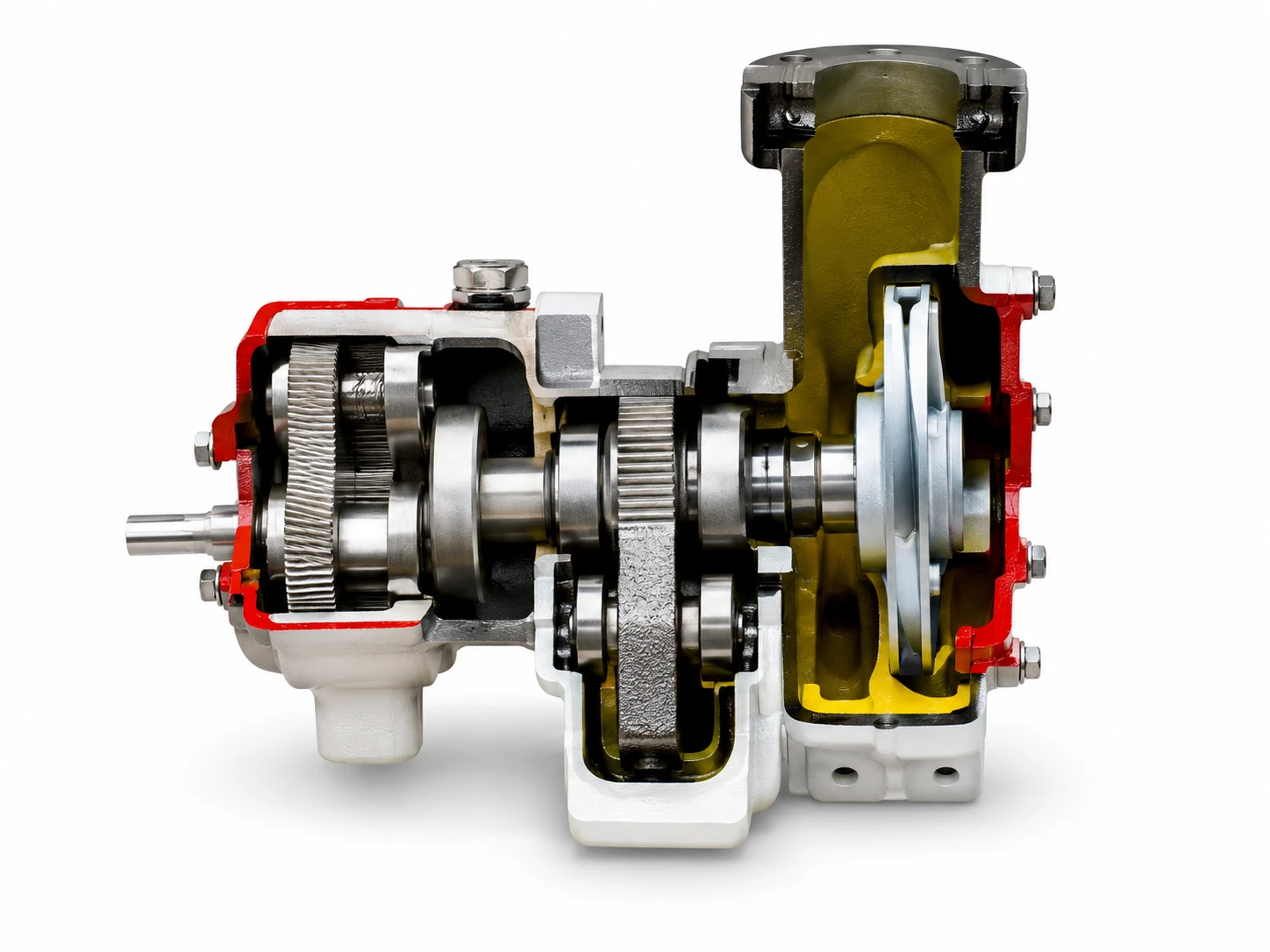

Materials & Construction
Built with quality materials for durability and reliability.
- Impeller MaterialsBrass or aluminum-alloy impeller options.
- Pump BodyDuctile-iron or aluminum-alloy body options.
- Gear-Reducer DesignCompact gear-reducer configuration designed for PTO-driven installation.
