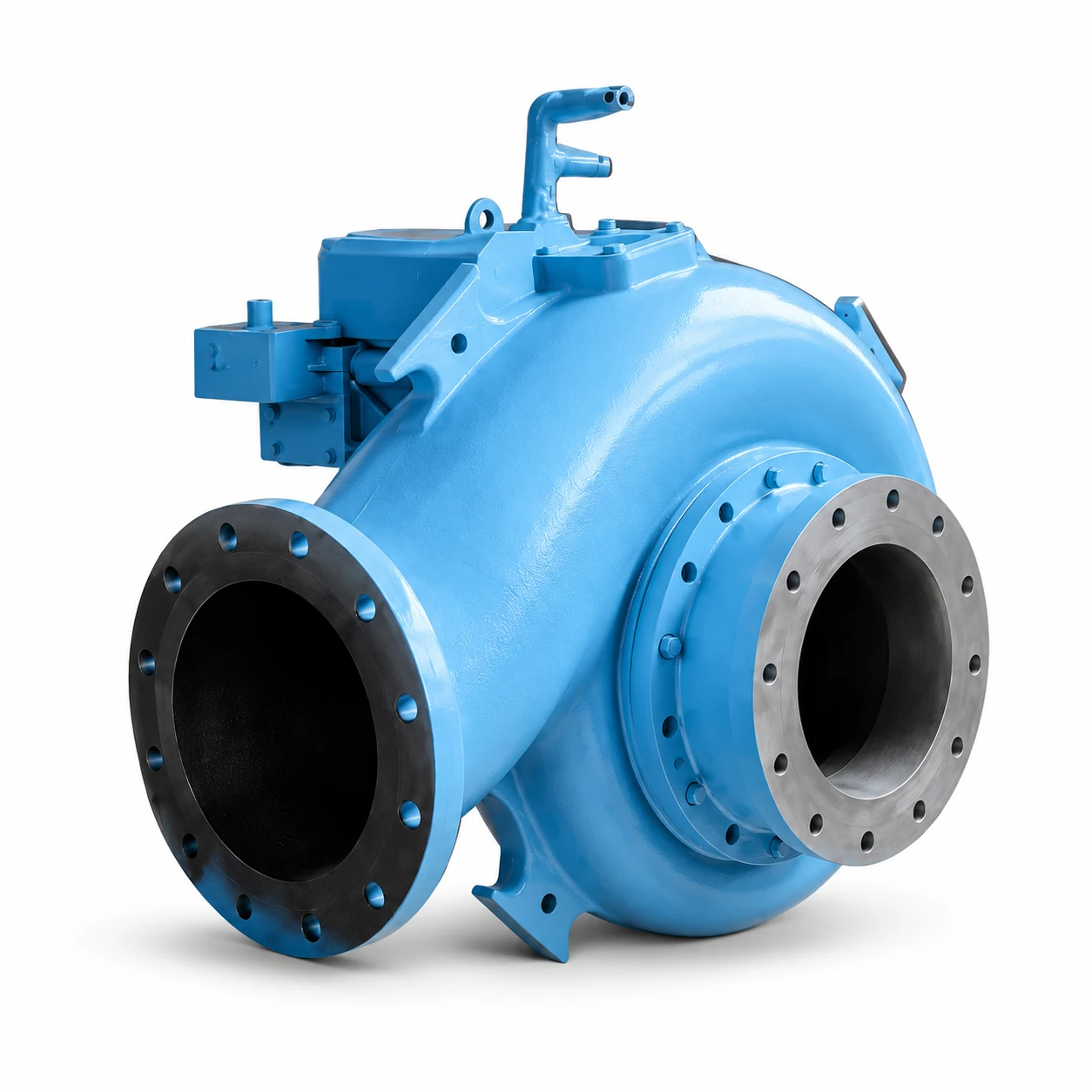

ST Series Pumps
End-suction, non-clogging centrifugal pumps for high-flow industrial pumping applications.
The MERAJ ST Series supports wastewater, dewatering, sludge handling, construction, dredging, booster pumping and firefighting applications with multiple mounting and drive configurations.
Built for High-Capacity Performance.
The ST Series covers 9 pump sizes from 4" to 24", with published maximum flows from 1,600 to 32,000 GPM and maximum heads up to 450 ft. The end-suction, non-clogging design supports industrial fluid handling where high flow, solids passage and flexible installation are required.
ST pumps support close-coupled, SAE engine-mount, horizontal frame-mount, vertical and vertical-coupled installations. Hydraulic variable-speed drive is standard to the documented ST configuration, while electric-drive compatibility provides another integration option.
Wide Capacity Range
9 pump sizes from 4" to 24" support different flow, head and solids-handling requirements.
Non-Clog Solids Handling
End-suction, non-clogging construction with a two-vane closed impeller supports fluids containing suspended solids within the specified solids-passage limit.
Dry-Run Capability
Oil-lubricated seals and the ST pump design support documented dry-running operation.
Flexible Integration
Multiple mounting configurations support fixed, engine-mounted, frame-mounted, vertical and project-specific pumping installations.
Choose Your Pump Size
Nine sizes. One ST Series platform.ST 4"

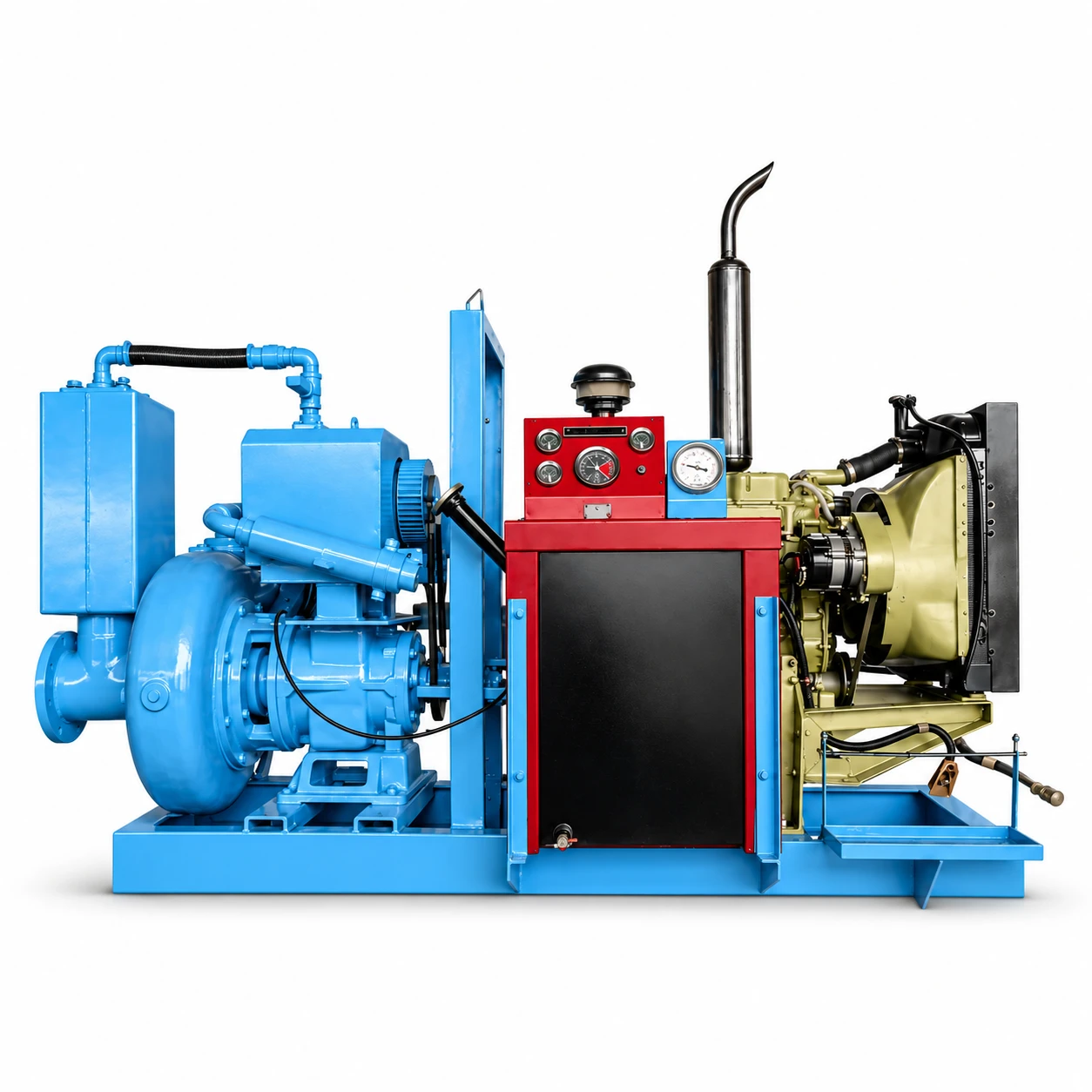

4-inch ST Series pump configuration with published capacity up to 1,600 GPM and maximum head up to 450 ft.
- Suction 4"
- Discharge 4"
- Max. Head 450 ft
- Max. Flow 1,600 GPM
- Max. RPM 2,000
- Max. Power 250 HP
- Impeller 17.5"
- Max. Solid Sphere 3"
ST 6"
6-inch ST Series configuration with published flow capacity up to 3,200 GPM and maximum head up to 300 ft.
- Suction 6"
- Discharge 6"
- Max. Head 300 ft
- Max. Flow 3,200 GPM
- Max. RPM 2,000
- Max. Power 125 HP
- Impeller 14"
- Max. Solid Sphere 3"
ST 8"
8-inch ST Series configuration for higher-volume industrial pumping, with published flow capacity up to 5,225 GPM.
- Suction 8"
- Discharge 8"
- Max. Head 360 ft
- Max. Flow 5,225 GPM
- Max. RPM 1,800
- Max. Power 300 HP
- Impeller 17.5"
- Max. Solid Sphere 3.38"
ST 10"
10-inch ST Series configuration with published flow capacity up to 10,000 GPM and a 4.75-inch maximum solid-sphere rating.
- Suction 10"
- Discharge 10"
- Max. Head 360 ft
- Max. Flow 10,000 GPM
- Max. RPM 1,800
- Max. Power 500 HP
- Impeller 18.5"
- Max. Solid Sphere 4.75"
ST 12"
12-inch ST Series configuration for high-volume industrial transfer, wastewater and dewatering applications.
- Suction 12"
- Discharge 12"
- Max. Head 200 ft
- Max. Flow 10,000 GPM
- Max. RPM 1,800
- Max. Power 250 HP
- Impeller 14"
- Max. Solid Sphere 3"
ST 14"
14-inch ST Series configuration with published flow capacity up to 12,000 GPM for large-volume pumping systems.
- Suction 14"
- Discharge 14"
- Max. Head 120 ft
- Max. Flow 12,000 GPM
- Max. RPM 1,200
- Max. Power 200 HP
- Impeller 17.5"
- Max. Solid Sphere 4"
ST 16"
16-inch ST Series configuration with published flow capacity up to 17,000 GPM and maximum solid-sphere passage of 4.5 inches.
- Suction 16"
- Discharge —
- Max. Head 240 ft
- Max. Flow 17,000 GPM
- Max. RPM 1,200
- Max. Power 500 HP
- Impeller 22"
- Max. Solid Sphere 4.5"
ST 20"
20-inch ST Series configuration for large-volume transfer with published maximum flow up to 24,000 GPM.
- Suction 20"
- Discharge 20"
- Max. Head 140 ft
- Max. Flow 24,000 GPM
- Max. RPM 750
- Max. Power 500 HP
- Impeller 28"
- Max. Solid Sphere 5"
ST 24"
24-inch ST Series configuration provides the highest published flow capacity in the range at up to 32,000 GPM.
- Suction 24"
- Discharge 24"
- Max. Head 140 ft
- Max. Flow 32,000 GPM
- Max. RPM 750
- Max. Power 700 HP
- Impeller 28"
- Max. Solid Sphere 5.25"
Performance
Rated at 700 RPM (UT-2) and 1000 RPM (UT-3)Operating Points
| Model | Flow (GPM) | Head (ft.) |
|---|---|---|
| UT-2 | 150 | 100 |
| UT-2 | 130 | 230 |
| UT-2 | 110 | 335 |
| UT-3 | 360 | 100 |
| UT-3 | 225 | 254 |
Performance Curve
Ideal For
- Fuel transfer
- Water transfer
- Dewatering
- Firefighting support
- Auxiliary systems
ST Series Performance
Published maximum ratings across all 9 ST Series pump sizes.
ST 4"
ST 6"
ST 8"
ST 10"
ST 12"
ST 14"
ST 16"
ST 20"
ST 24"
ST Series Technical Data
| Size | Max. Head | Max. Flow | Max. RPM | Max. Power | Impeller | Max. Solid Sphere |
|---|---|---|---|---|---|---|
| 4" | 450 ft | 1,600 GPM | 2,000 | 250 HP | 17.5" | 3" |
| 6" | 300 ft | 3,200 GPM | 2,000 | 125 HP | 14" | 3" |
| 8" | 360 ft | 5,225 GPM | 1,800 | 300 HP | 17.5" | 3.38" |
| 10" | 360 ft | 10,000 GPM | 1,800 | 500 HP | 18.5" | 4.75" |
| 12" | 200 ft | 10,000 GPM | 1,800 | 250 HP | 14" | 3" |
| 14" | 120 ft | 12,000 GPM | 1,200 | 200 HP | 17.5" | 4" |
| 16" | 240 ft | 17,000 GPM | 1,200 | 500 HP | 22" | 4.5" |
| 20" | 140 ft | 24,000 GPM | 750 | 500 HP | 28" | 5" |
| 24" | 140 ft | 32,000 GPM | 750 | 700 HP | 28" | 5.25" |
Maximum Flow by Pump Size
Note: Values shown are based on published operating points.
Applications
Sewer & Wastewater
Non-clogging pumping for sewer systems and wastewater-transfer applications.
Construction Dewatering
High-volume removal and transfer of water from construction sites, excavations and temporary works.
Sludge Handling
Fluid handling for applications involving suspended solids and sludge within the specified solids-passage capacity.
Dredging
Pumping support for dredging and related large-volume fluid-transfer applications.
Industrial Transfer
High-flow pumping for process-water transfer, bypass duties and industrial fluid movement.
Firefighting & Booster Systems
ST pumps can serve firefighting and booster-pump applications and can be directly integrated into pipelines.
Drive & Installation Options
Configure the ST Series around the operating environment and installation method.
- Hydraulic Variable-Speed DriveHydraulic drive allows variable-speed pump operation to match system requirements.
- Electric Drive CompatibilityST Series pumps can be configured for electric-drive applications where required.
- Multiple Mounting ConfigurationsClose-coupled, SAE engine-mount, horizontal frame-mount, vertical and vertical-coupled configurations are available.
Materials & Construction
Material and internal-component options support industrial pumping environments.
- Iron or CD4MCu ConstructionST Series pumps are available in Iron or CD4MCu stainless steel.
- Corrosion-Resistant Material OptionMERAJ states that CD4MCu provides corrosion resistance equal to or better than 316 stainless steel while providing approximately double the yield strength.
- Two-Vane Closed ImpellerA two-vane closed impeller supports the ST Series non-clogging and solids-handling design.
- Oil-Lubricated SealsOil-lubricated seals support the documented dry-running capability of the ST Series.
