MT Series Pumps
Self-priming, non-clogging centrifugal pumps for municipal water management, dewatering and solids-bearing fluid transfer.
The MERAJ MT Series supports municipal, industrial and temporary pumping applications involving water, wastewater and slurry. Seven pump sizes combine self-priming operation, solids handling and re-prime functionality for changing site conditions.
Built for Municipal Pumping.
The MT Series covers 2", 3", 4", 6", 8", 10" and 12" suction sizes, with published maximum flows from 225 to 4,000 GPM and maximum heads up to 133 ft. The range is intended for municipal water management and dewatering where self-priming operation and solids handling are required.
Self-Priming Operation
Self-priming centrifugal operation supports suction-lift pumping and field deployment without continuous external priming.
Solids Handling
Non-clogging pump configurations provide published solids passage from 1.5" to 3", depending on pump size.
Re-Prime Functionality
Re-prime capability supports pumping when suction conditions change during municipal and dewatering work.
Wide Capacity Range
Seven pump sizes provide published maximum flow from 225 to 4,000 GPM for different pumping requirements.
Choose Your Pump Size
Seven sizes. Multiple municipal applications.
MT 2"
Compact MT configuration for smaller municipal drainage, water transfer and dewatering requirements.
- Suction 2"
- Discharge 2"
- Max. Head 103 ft
- Max. Flow 225 GPM
- Max. RPM 2,000
- Max. Power 10 HP
- Net Weight 203 lb / 92 kg
- Repriming Lift 24 ft
- Max. Solid Sphere 1.5"
MT 3"
3-inch configuration with increased flow and solids passage for municipal water and wastewater pumping.
- Suction 3"
- Discharge 3"
- Max. Head 112 ft
- Max. Flow 450 GPM
- Max. RPM 2,000
- Max. Power 15 HP
- Net Weight 220 lb / 99 kg
- Repriming Lift 25 ft
- Max. Solid Sphere 2.5"
MT 4"
4-inch configuration for dewatering and solids-bearing fluid transfer requiring higher flow capacity.
- Suction 4"
- Discharge 4"
- Max. Head 119 ft
- Max. Flow 730 GPM
- Max. RPM 1,750
- Max. Power 15 HP
- Net Weight 310 lb / 141 kg
- Repriming Lift 25 ft
- Max. Solid Sphere 3"
MT 6"
Higher-capacity configuration for municipal dewatering, sewer bypass and wastewater-transfer applications.
- Suction 6"
- Discharge 6"
- Max. Head 111 ft
- Max. Flow 1,500 GPM
- Max. RPM 1,550
- Max. Power 50 HP
- Net Weight 935 lb / 425 kg
- Repriming Lift 25 ft
- Max. Solid Sphere 3"
MT 8"
8-inch configuration for higher-volume municipal pumping and temporary water-management systems.
- Suction 8"
- Discharge 8"
- Max. Head 109 ft
- Max. Flow 2,620 GPM
- Max. RPM 1,450
- Max. Power 60 HP
- Net Weight 1,705 lb / 775 kg
- Repriming Lift 23 ft
- Max. Solid Sphere 3"
MT 10"
High-capacity configuration with the highest published maximum head in the MT Series.
- Suction 10"
- Discharge 10"
- Max. Head 133 ft
- Max. Flow 3,200 GPM
- Max. RPM 1,450
- Max. Power 100 HP
- Net Weight 1,750 lb / 794 kg
- Repriming Lift 22 ft
- Max. Solid Sphere 3"
MT 12"
Largest MT suction configuration for high-volume municipal and temporary pumping applications.
- Suction 12"
- Discharge 10"
- Max. Head 120 ft
- Max. Flow 4,000 GPM
- Max. RPM 1,450
- Max. Power 125 HP
- Net Weight 2,200 lb / 998 kg
- Max. Solid Sphere 3"
Performance
Rated at 700 RPM (UT-2) and 1000 RPM (UT-3)Operating Points
| Model | Flow (GPM) | Head (ft.) |
|---|---|---|
| UT-2 | 150 | 100 |
| UT-2 | 130 | 230 |
| UT-2 | 110 | 335 |
| UT-3 | 360 | 100 |
| UT-3 | 225 | 254 |
Performance Curve
Ideal For
- Fuel transfer
- Water transfer
- Dewatering
- Firefighting support
- Auxiliary systems
MT Series Performance
Published maximum ratings across the MT Series range.
MT 2"
MT 3"
MT 4"
MT 6"
MT 8"
MT 10"
MT 12"
MT Series Technical Data
| Suction | Discharge | Max. Head | Max. Flow | Max. RPM | Max. Power | Net Weight | Repriming Lift | Max. Solid Sphere |
|---|---|---|---|---|---|---|---|---|
| 2" | 2" | 103 ft | 225 GPM | 2,000 | 10 HP | 203 lb / 92 kg | 24 ft | 1.5" |
| 3" | 3" | 112 ft | 450 GPM | 2,000 | 15 HP | 220 lb / 99 kg | 25 ft | 2.5" |
| 4" | 4" | 119 ft | 730 GPM | 1,750 | 15 HP | 310 lb / 141 kg | 25 ft | 3" |
| 6" | 6" | 111 ft | 1,500 GPM | 1,550 | 50 HP | 935 lb / 425 kg | 25 ft | 3" |
| 8" | 8" | 109 ft | 2,620 GPM | 1,450 | 60 HP | 1,705 lb / 775 kg | 23 ft | 3" |
| 10" | 10" | 133 ft | 3,200 GPM | 1,450 | 100 HP | 1,750 lb / 794 kg | 22 ft | 3" |
| 12" | 10" | 120 ft | 4,000 GPM | 1,450 | 125 HP | 2,200 lb / 998 kg | 18" | 3" |
*Note: Repriming lift for 12" model is published as 18 inches in source data.
Maximum Flow by Pump Size
Note: Values shown are based on published operating points.
Applications
Municipal Dewatering
Water removal for municipal drainage, infrastructure and maintenance operations.
Wastewater Transfer
Transfer of wastewater and other fluids containing suspended solids within the specified solids-passage capacity.
Sewer Bypass
Temporary pumping support for sewer maintenance, repair and bypass operations.
Slurry & Solids Handling
Non-clogging pumping for fluids containing suspended solids and light slurry.
Construction Dewatering
Water removal from excavations, infrastructure works and municipal construction sites.
Stormwater & Flood Removal
High-volume temporary pumping for accumulated stormwater and local flood-water removal.
Installation & Drive Options
Choose the pumping package that suits the application.

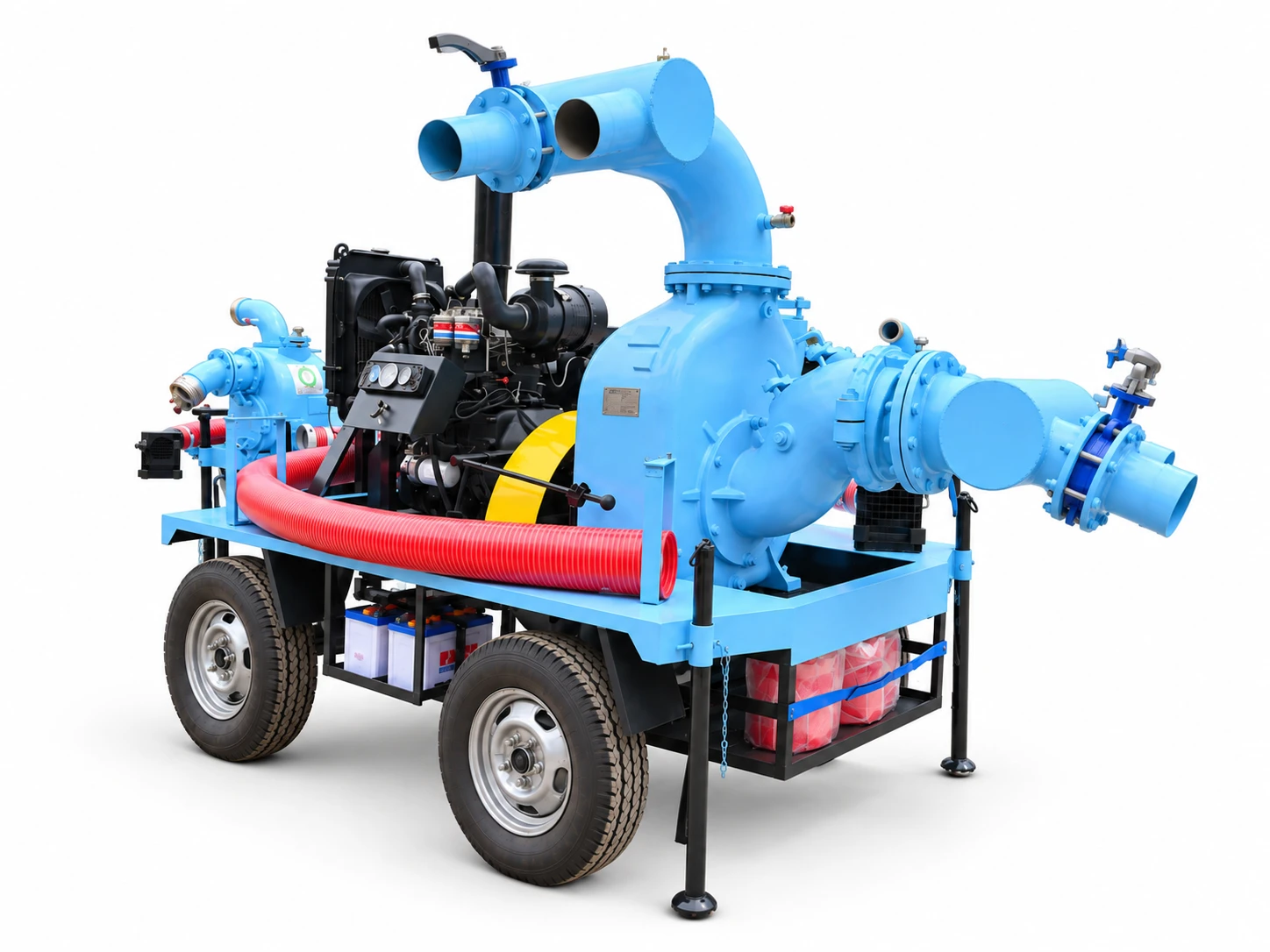

- Engine-Driven SystemsPump and engine assemblies can form standalone mobile pumping packages for field operation.
- Fixed / Skid InstallationMT pumps can form part of stationary or skid-mounted municipal pumping systems.
- Vehicle IntegrationMT pump systems can support specialized MERAJ Municipality Vehicles and project-specific pumping configurations.

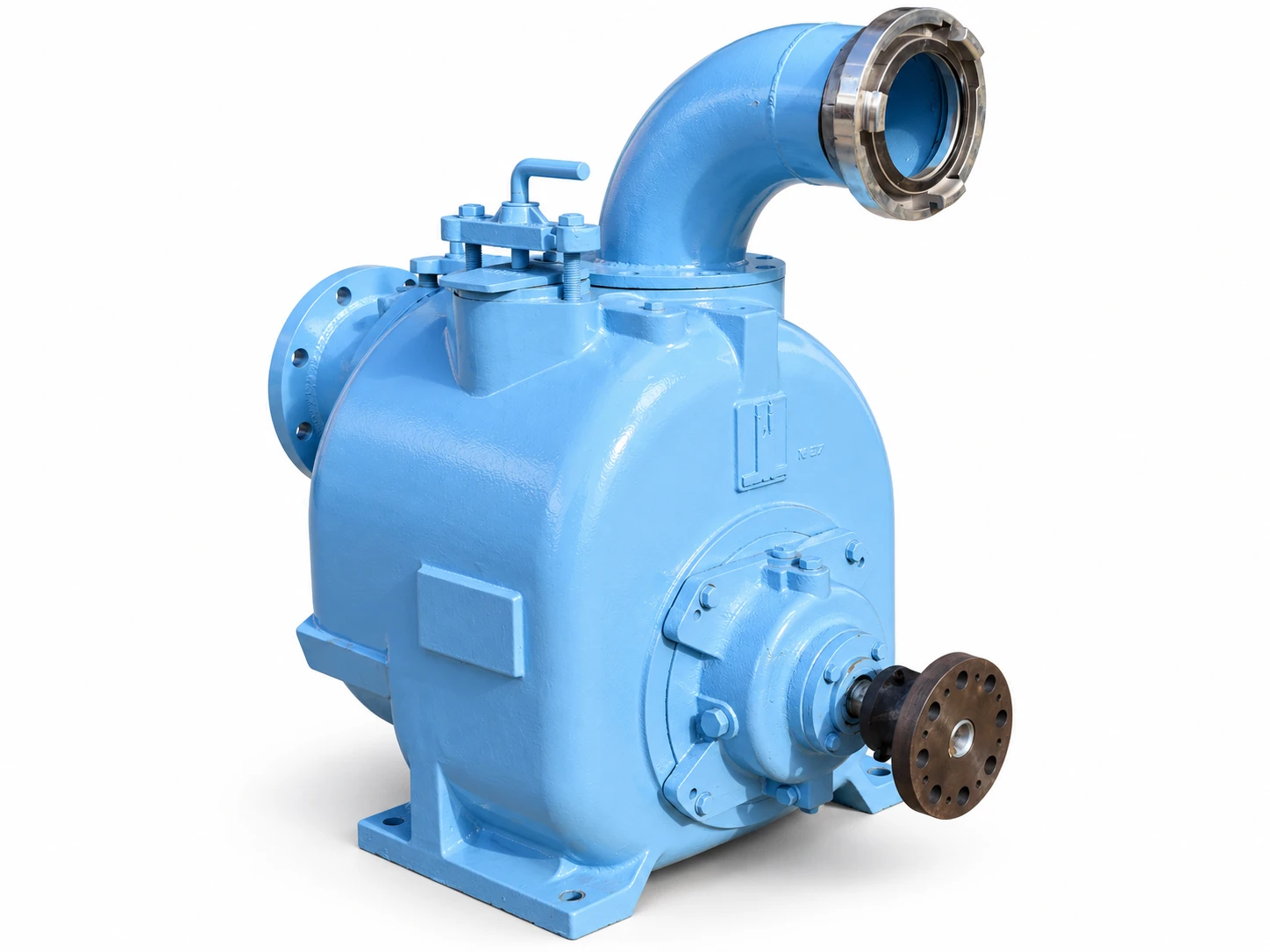

Pump Construction & Serviceability
- Solids-Handling ConfigurationPump sizing and solids passage vary across the seven published MT configurations.
- Re-Prime FunctionalityThe MT Series incorporates re-prime functionality for municipal applications where suction conditions may change.
- Service AccessThe pump configuration is designed to support installation and maintenance in municipal pumping applications.
Need Help Selecting an MT Pump?
Our team can help identify the right MT configuration based on flow, head, suction conditions, solids passage and installation requirements.
