TRUCK MOUNTED AERIAL & CRANES

Meraj Telescopic Cranes - MTC

Truck-mounted lifting for construction, logistics, utility and industrial operations.

The MTC Series combines 3-6 ton lifting capacities with telescopic hexagonal booms, hydraulic winches, hydraulic outriggers and integrated safety systems for controlled load handling.

Request a Quote Download Brochure
  • 3-6 Ton Lifting
  • Up to 16.2 m Working Radius
  • Hydraulic Winch & Outriggers

The MERAJ MTC Series consists of truck-mounted telescopic lorry cranes for construction, logistics, utility and industrial lifting applications. The series covers lifting capacities from 3 to 6 tons and combines extended reach with controlled load handling.

Each MTC model uses a hexagonal telescopic boom, hydraulic winch and hydraulic outriggers. The cranes are operated through side levers, while the boom angle can be adjusted from 0 to 80 degrees to suit different lifting positions and work environments.

Explore the wider MERAJ Truck Mounted Aerial & Cranes range for truck-mounted access and lifting solutions. Teams requiring personnel access at height can compare the MTC Series with the MERAJ Bucket Platform.

Request Product Download Brochure
MERAJ Telescopic Crane MTC product view

The TC-3004 is the 3-ton model in the MTC range. It provides a maximum lifting capacity of 3 tons at 3 m, a maximum lifting height of 12.8 m, a maximum working radius of 9.8 m and a maximum working height of 13.5 m. The crane is intended for trucks with payload capacity over 3.5 tons and has a net weight of approximately 1,500 kg. Its four-section telescopic boom uses two cylinders and one wire. The hydraulic system is rated at 45 L/min with a 50 L oil tank. The winch uses an 8 mm wire rope with an 80 m length.

MTC Technical Highlights

Lifting Capacity Range
3 to 6 tons across the TC-3004, TC-5004 and TC-6006 models.
Boom Construction
Hexagonal telescopic boom design for controlled lifting and structural stability.
Boom Angle
0 to 80 degrees across the documented MTC models.
Hydraulic Winch
Spur gear reduction with mechanical brake for controlled winch operation.
Hydraulic Outriggers
2 main and 2 rear outriggers with vertical and horizontal hydraulic positioning.
Safety Valves
Pressure relief valve, counterbalance valve and pilot-operated check valve.
Operational Safety
Boom angle indicator, hook safety latch, winch brake, warning alarm, emergency stop switch, overwinding alarm and wire separation prevention.
Controls
Primary crane operation through side levers.
Max Working Radius
Up to 16.2 m on the TC-6006.
Max Working Height
Up to 19.5 m on the TC-6006.

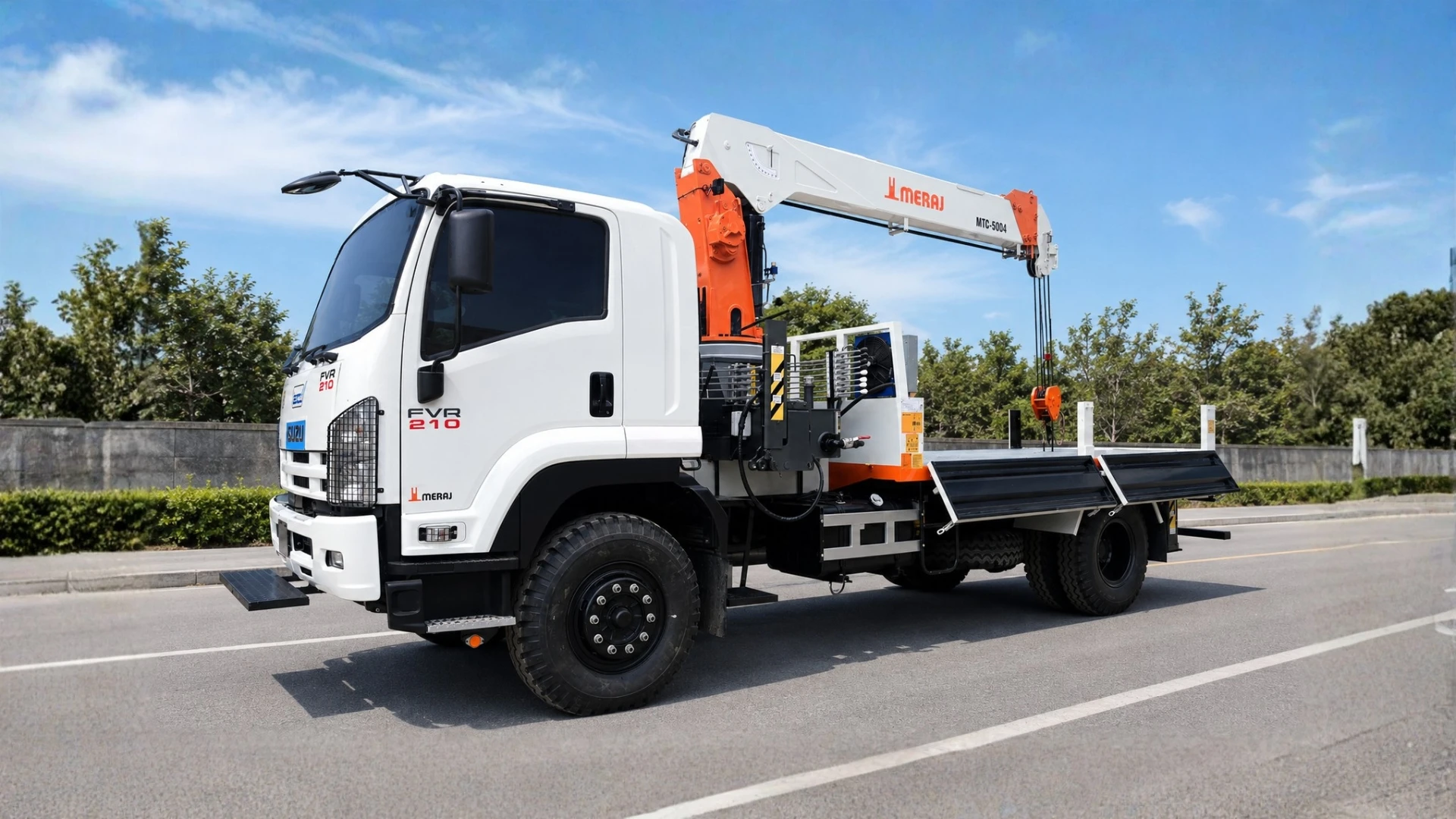

Meraj Telescopic Cranes - MTC product view

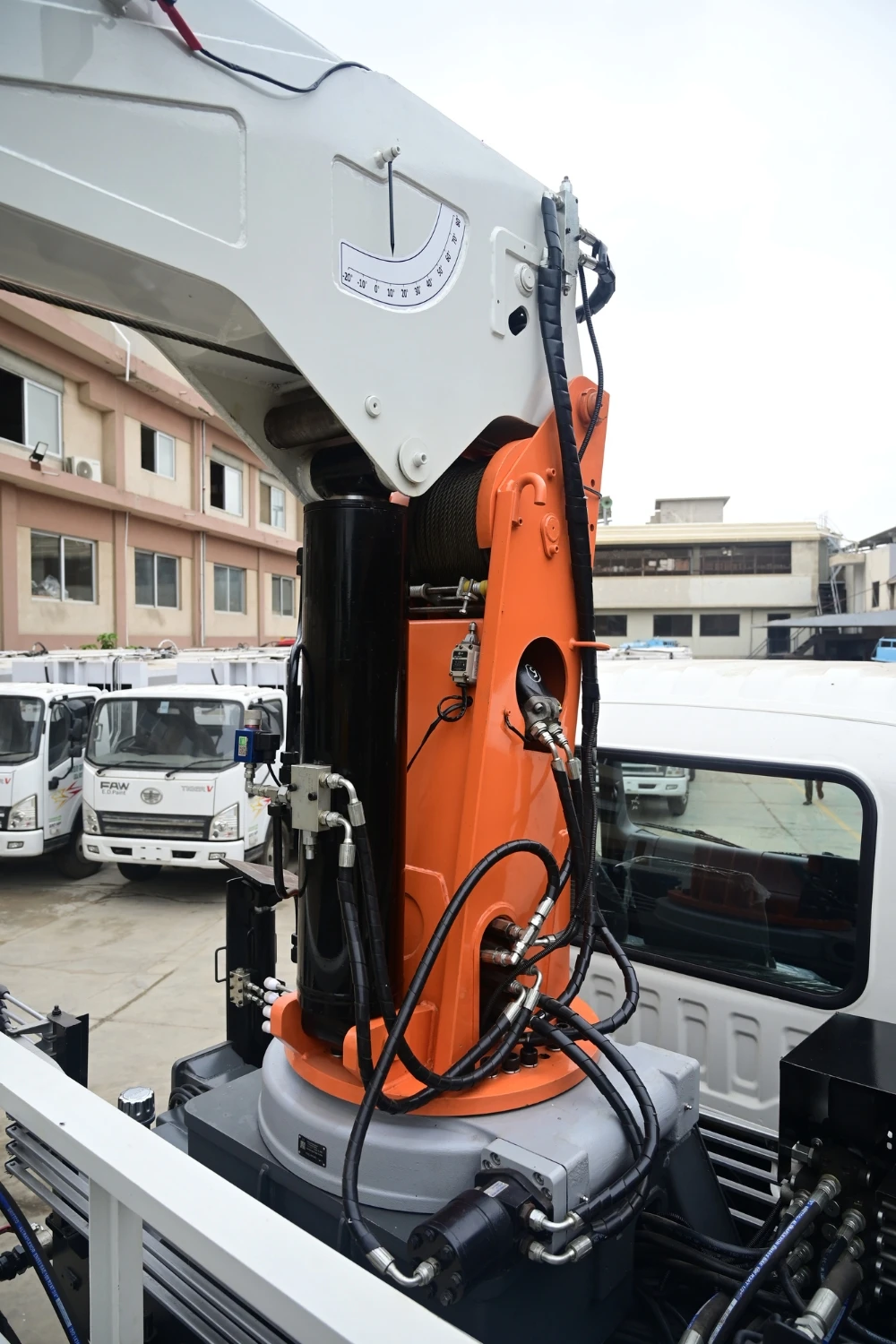

MTC hydraulic boom detail

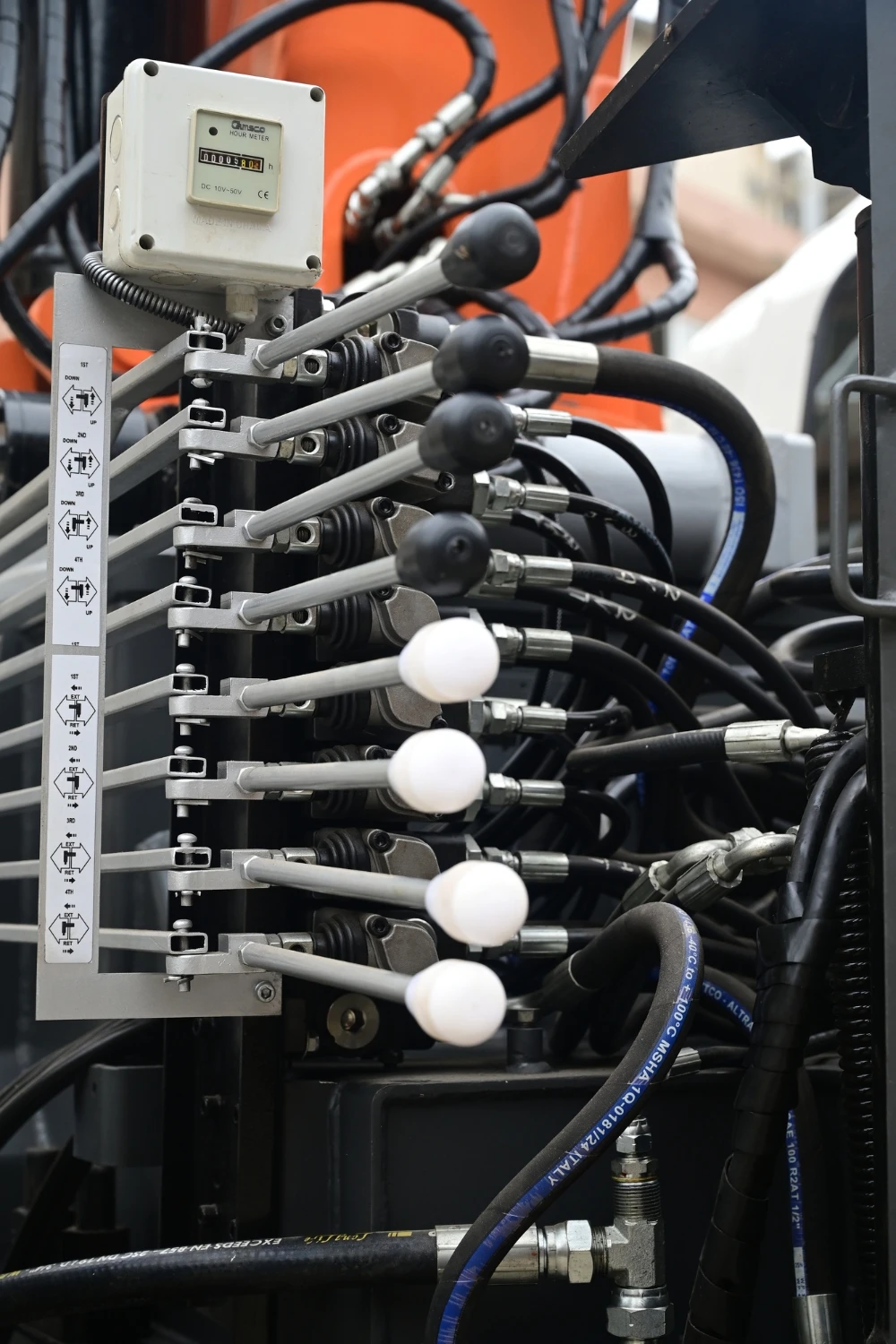

MTC side control levers

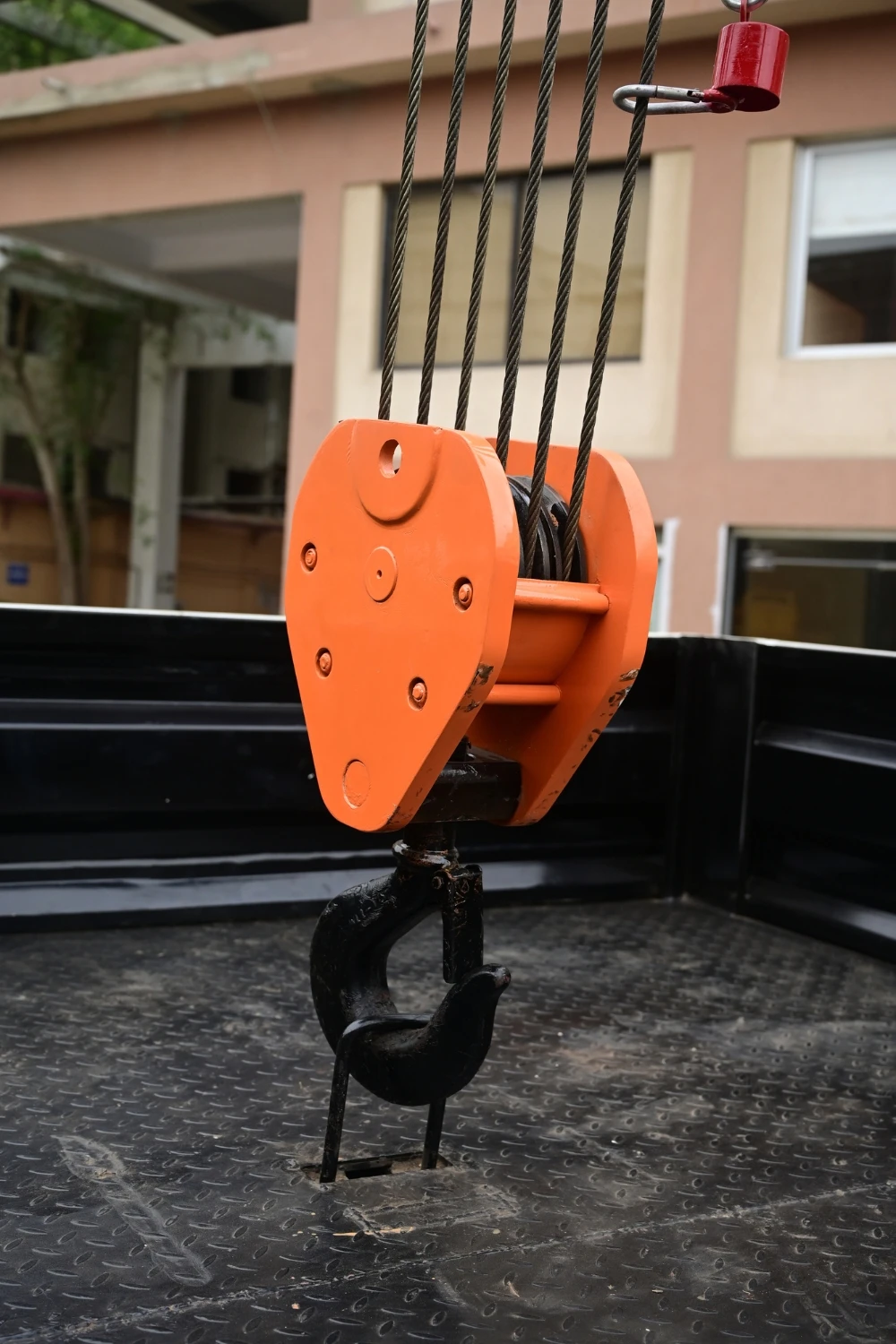

MTC safety hook detail

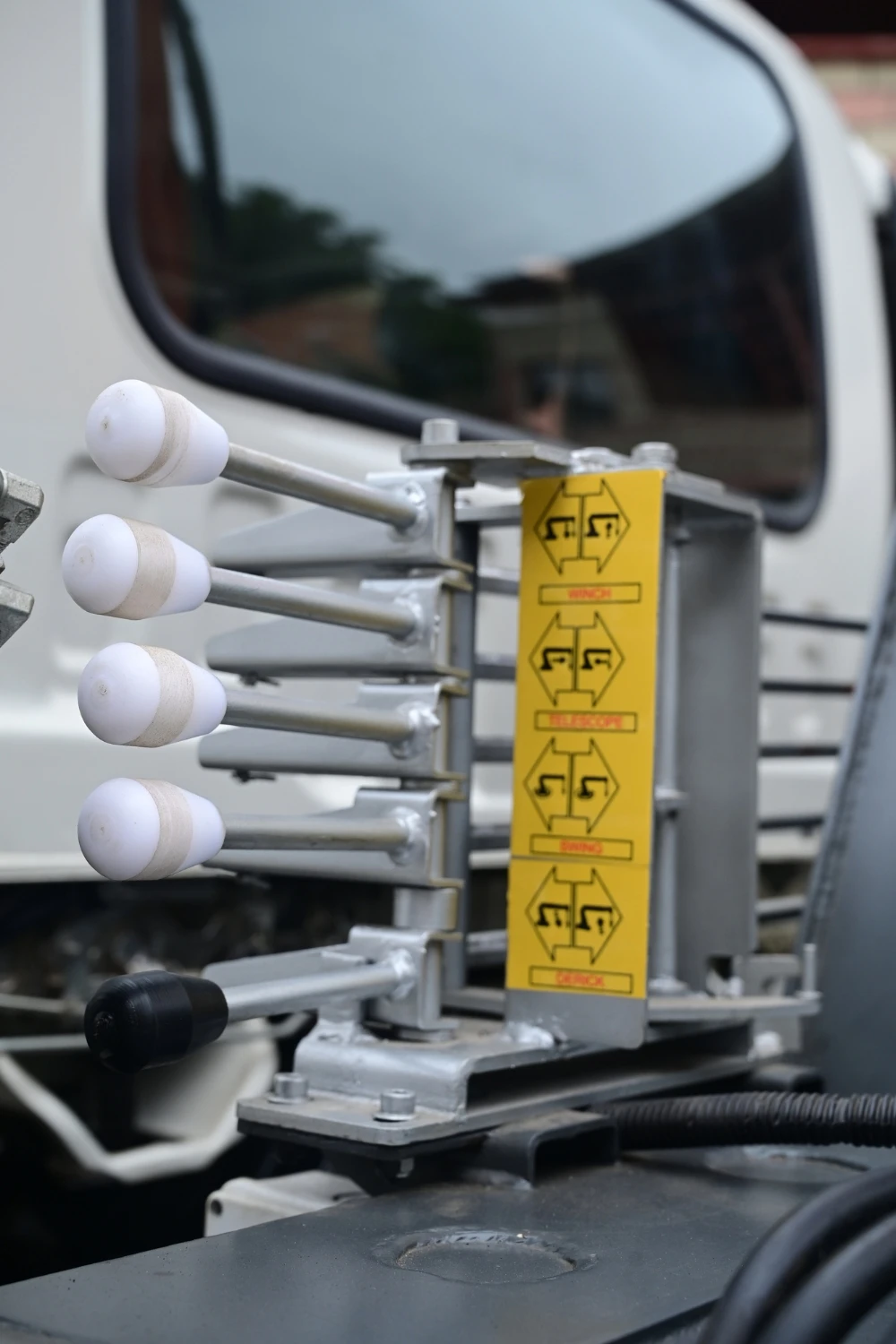

MTC outrigger control levers
