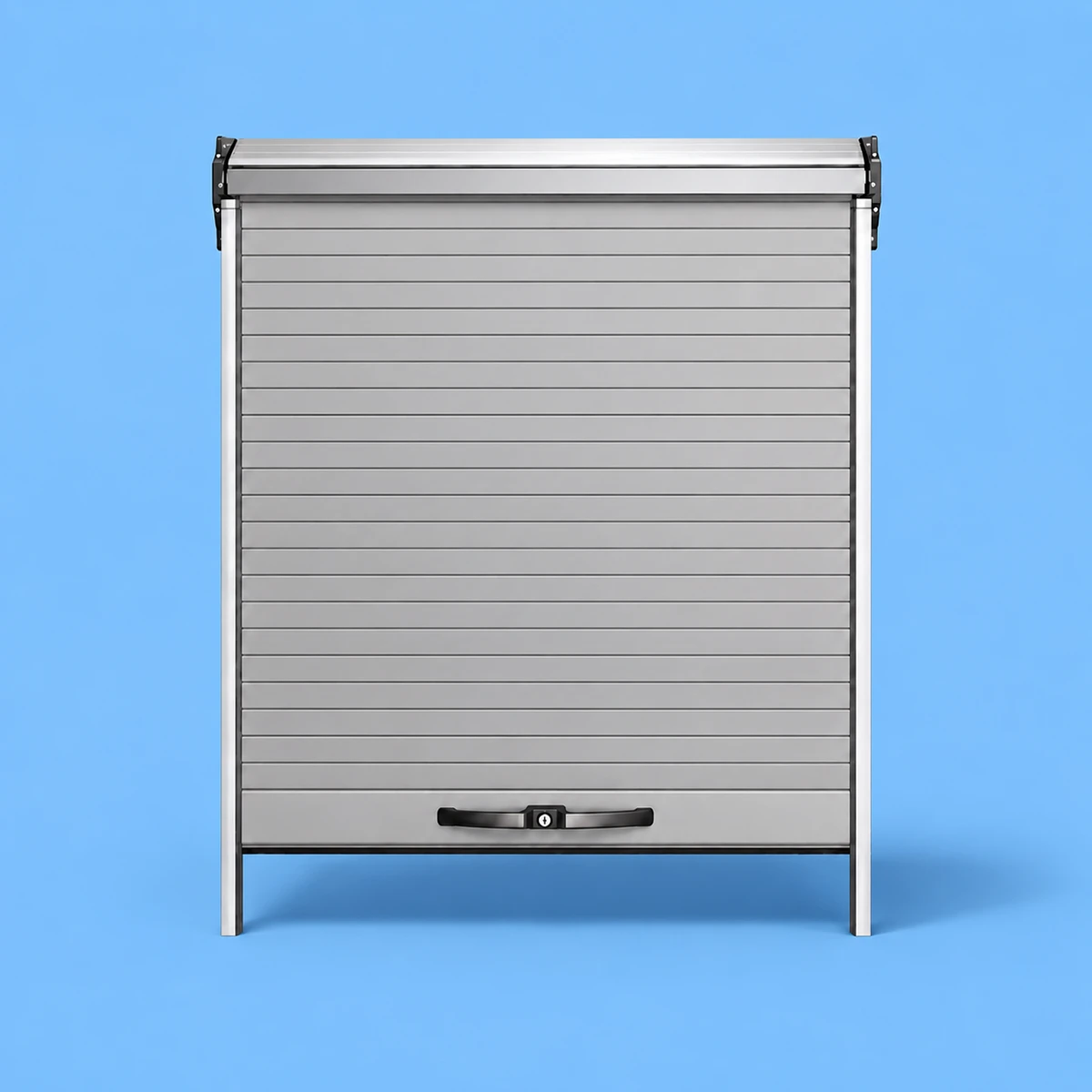

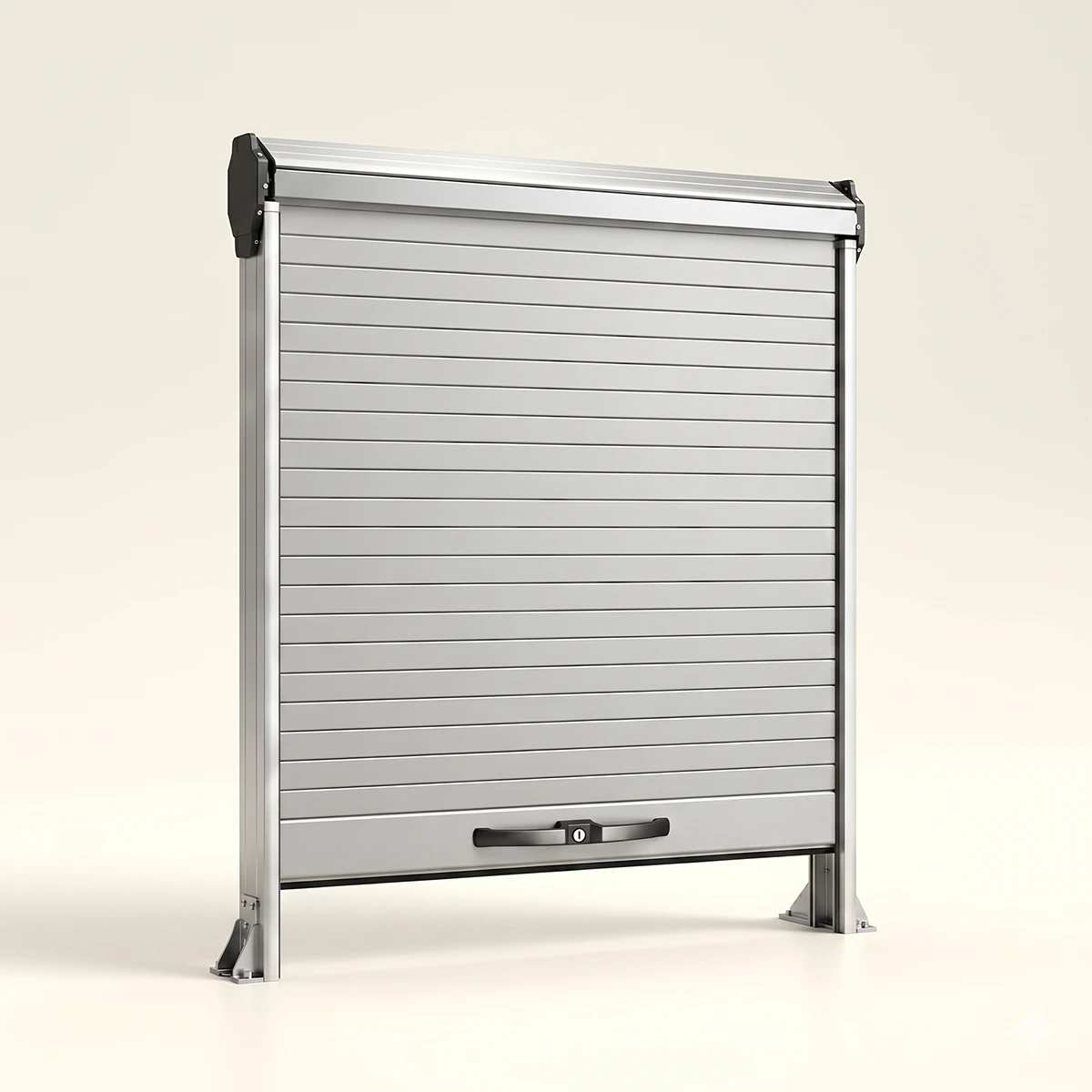

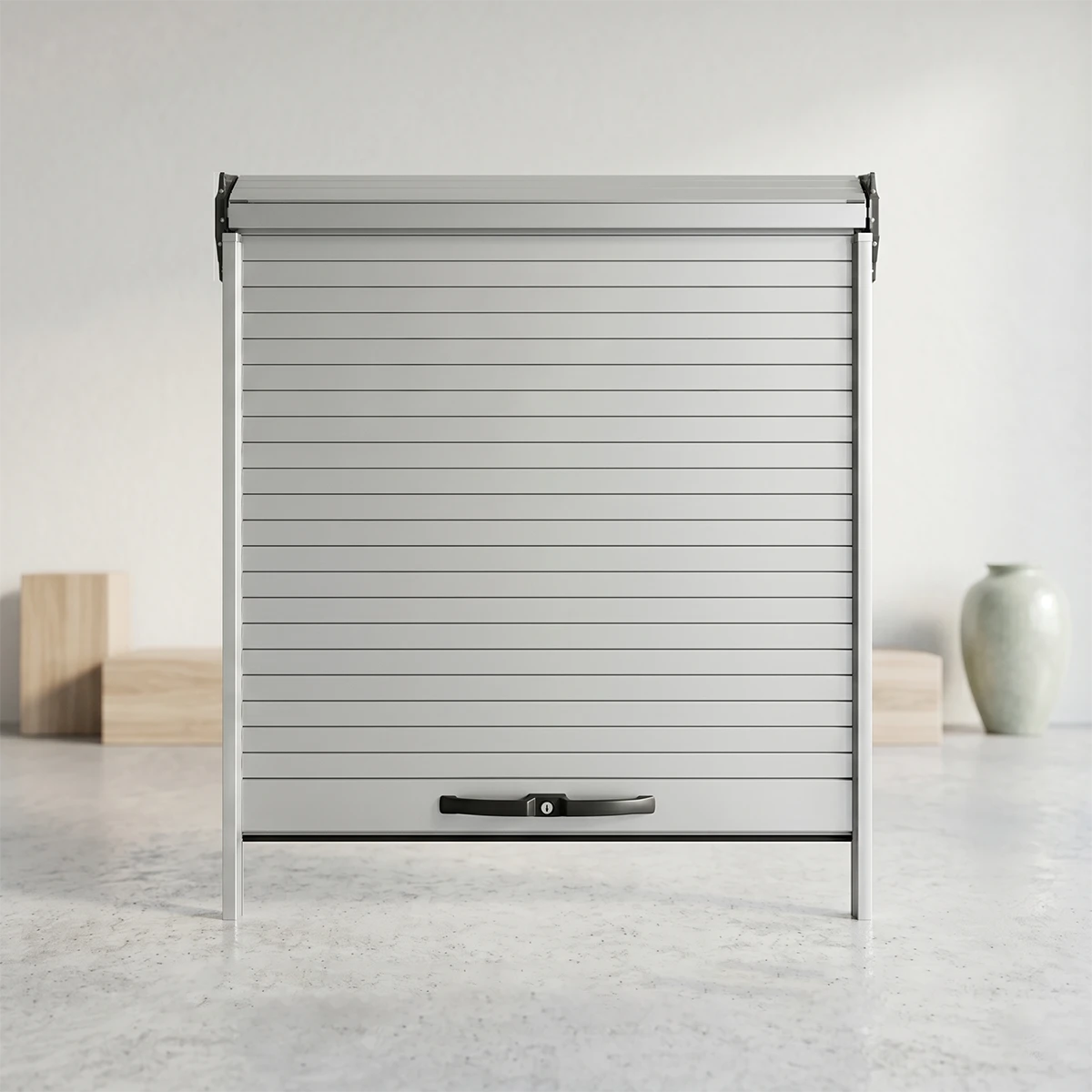

The Meraj International Roller Shutter System provides optimal protection for vehicle equipment departments. The structure utilizes double-walled anodized slats manufactured from a light alloy, ensuring a lightweight yet highly durable build. These positively engaged slats deliver a secure, stable connection and maintain a flush surface on both the interior and exterior. Engineered for rigorous environments, the system allows for easy horizontal movement and rapid equipment access, even under challenging off-road conditions.
Request ProductThe system employs a spring roller to bear the weight of the shutter body, utilizing deflection wheels and self-lubricating sliding blocks for effortless, low-maintenance movement. To ensure comprehensive weather resistance, engineers integrated two flexible seals between each slat, vertical seals in the guiding rails, and an extra flexible sealing strip at the bottom exclusion slat. A cover strip, equipped with an integrated rain track and two-lip seal, makes direct contact with the shutter body only when fully closed, which significantly reduces friction and wear over time.
Operators can choose a glove-proof Double Hand Grip with a central push-button or a Barlock design featuring a full-width handrail. Both systems offer lockable options securely integrated within the space-saving bottom exclusion slat.
The design simplifies installation with a dedicated assembly panel featuring pre-drilled holes for mounting the roller spring and deflection wheels. A multi-functional lamp support easily houses illumination, solenoid switches, and cable harnesses.
Every system includes a dust-proof and waterproof solenoid-operated switch for compartment illumination. Its overhead design protects the switch, simplifies electrical installation, and eliminates wear-and-tear parts.
The corrugated profile includes integrated reflectors to improve operator safety during low-light conditions. Departments can request custom painting to perfectly match specific vehicle or organizational color requirements.
MERAJ guarantees the availability of spare parts for ten years. Each system includes a detailed assembly manual and a comprehensive spare parts list to support easy setup and ongoing care.
| Feature | Details |
|---|---|
| Width Range | Standard dimensions range from 620 mm to 2620 mm. |
| Height Range | Standard dimensions range from 544 mm to 2400 mm. |
| Design Configurations | Available in rolled, pulled, or pushed designs to suit specific vehicle requirements. |
| Slat Construction | Manufactured from double-walled, anodized light alloy. |
| Locking System | Utilizes wedges on both sides of the guiding rails (Double Grip) or two external wedges (Barlock). |
